- For Film, Broadcast and Video Production
- Output: 20,500 Lux at 3.3' w/ Reflector
- 2700-6500K CCT
- AC or Battery Power
- Onboard, Wireless, DMX & App Control
- CRI 96 | TLCI 96 | CQS 95 | SSI 85
- Active Cooling
Quick Overview
- For Film, Broadcast and Video Production
- Output: 20,500 Lux at 3.3' w/ Reflector
- 2700-6500K CCT
- AC or Battery Power
- Onboard, Wireless, DMX & App Control
- CRI 96 | TLCI 96 | CQS 95 | SSI 85
- Active Cooling
- Bowens S Accessory Mount
- 9 Preset Special Effects
- Includes Remote, Reflector, Clamp & Bag
Product Description

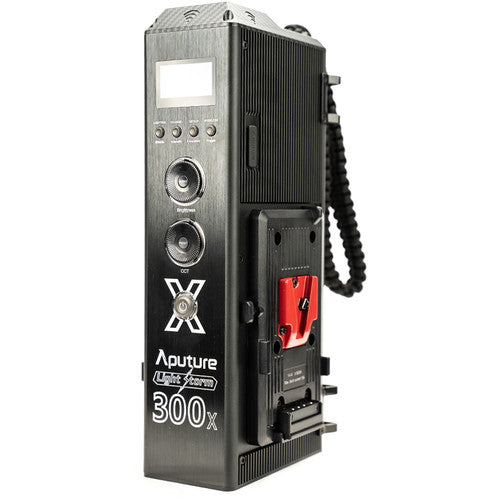

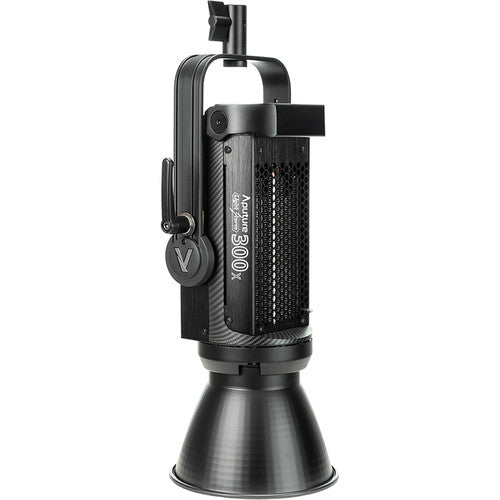

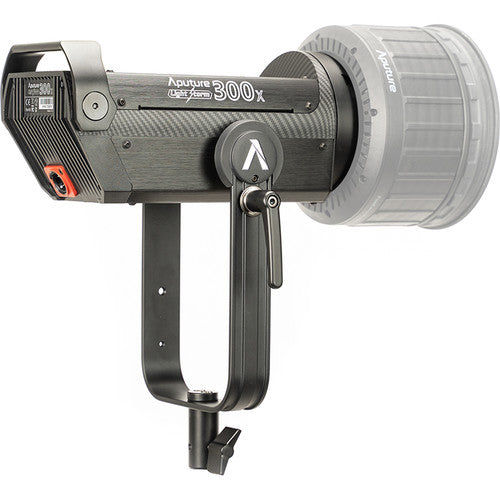

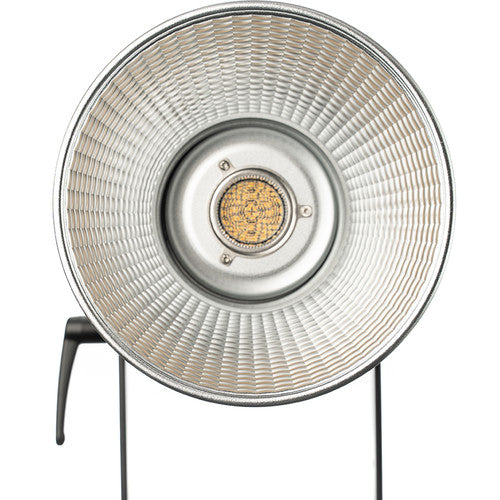

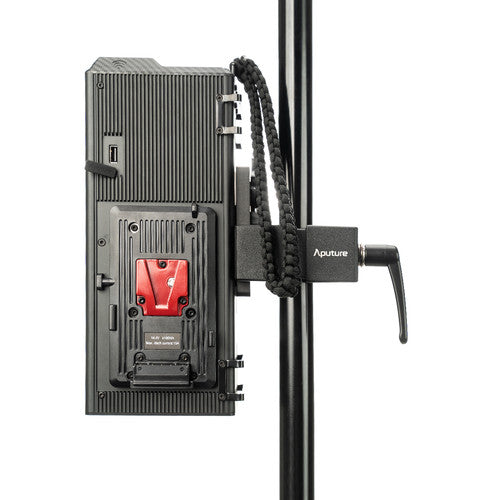

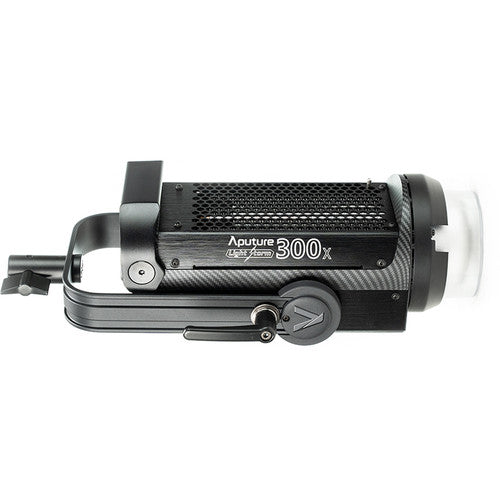

The LS 300x Bi-Color LED Monolight from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range. It emits up to 20,500 lux at 3.3' with its included 55° Hyper Reflector. The Controller Box attached to the LS 300x head with a 9.8' head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating, multi-voltage controller also operates using single or dual Gold mount batteries, suitable for lighting in remote locations.
Robust Bi-Color Performance
Combining the latest optical color-blending technology with Aputure's dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 96, TLCI 96, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.
Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options
Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure's integrated Sidus Mesh network chipset, all the 300x's functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.
Dual Output Modes
Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Output Mode will maximize CCT and dimming levels within the 4000-5500K range.
Bowens S-Mount Versatility

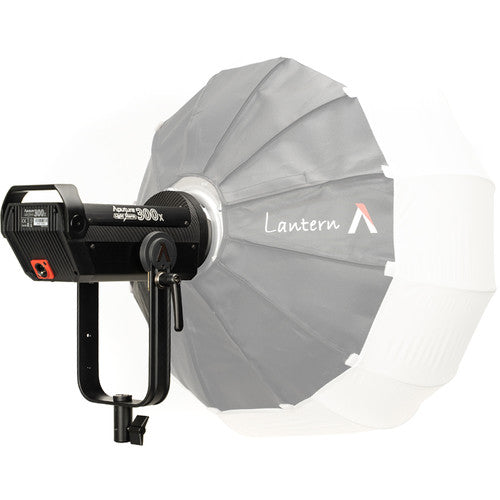

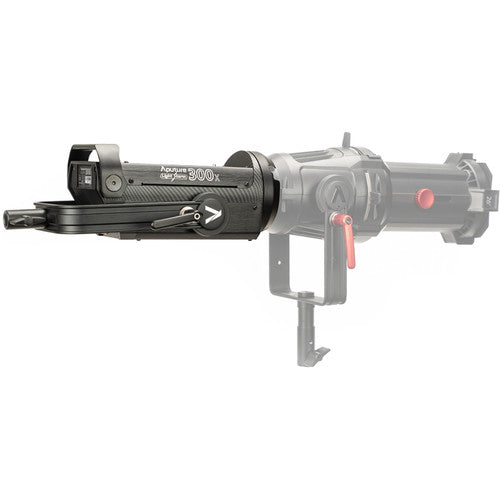

The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.
Four Available Dimming Modes
- Linear
- Exponential
- Logarithmic
- S-Curve
5 Available Common CCT Presets
- 2700K
- 3200K
- 4200K
- 5500K
- 6500K
Nine Customizable Built-In Lighting Effects
- Paparazzi
- Fireworks
- Lightning
- Faulty Bulb
- TV
- Pulsing
- Strobe
- Explosion
- Fire
| Item Type | 1 x LED Monolight |
| Included Light Modifier | 1 x Reflector |

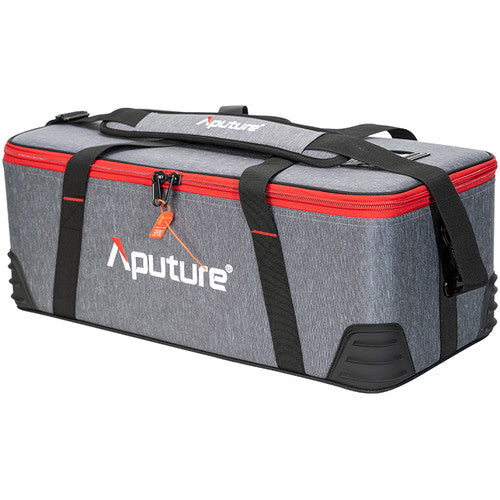

| Included Storage Case | 1 x Case |
| Photometrics | 105° at 3200K: 473 fc / 5100 Lux at 3.3' / 1 m 53 fc / 580 Lux at 9.8' / 3 m 20 fc / 220 Lux at 16.4' / 5 m 105° at 5600K: 585 fc / 6300 Lux at 3.3' / 1 m 65 fc / 700 Lux at 9.8' / 3 m 23 fc / 250 Lux at 16.4' / 5 m 3200K: 1504 fc / 16,200 Lux at 3.3' / 1 m (with Reflector) 120 fc / 1300 Lux at 9.8' / 3 m (with Reflector) 41 fc / 450 Lux at 16.4' / 5 m (with Reflector) 5600K: 1904 fc / 20,500 Lux at 3.3' / 1 m (with Reflector) 157 fc / 1700 Lux at 9.8' / 3 m (with Reflector) 51 fc / 550 Lux at 16.4' / 5 m (with Reflector) |
| Color Temperature | 2700 to 6500K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy Standard | CRI 96 TLCI 96 CQS 95 |
| Dimmable | App-Controlled / Controller Included / DMX (Continuous) • 0 to 100% |
| Beam Angle | 105° |
| Front Accessory Mount | Bowens S |
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Included |
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Battery Plate Type | 2 x Gold Mount (Built-In) |
| Battery | 2 x Gold Mount Rechargeable, 14.4 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 350 W |
| Fixture Mounting | 1 x 5/8" Receiver (Via Yoke Mount) |
Light Fixture
| Item Type | 1 x LED Monolight |
| Included Light Modifier | 1 x Reflector |
| Included Storage Case | 1 x Case |
| Lumens | 56,000 |
| Photometrics | 105° at 3200K: 473 fc / 5100 Lux at 3.3' / 1 m 53 fc / 580 Lux at 9.8' / 3 m 20 fc / 220 Lux at 16.4' / 5 m 105° at 5600K: 585 fc / 6300 Lux at 3.3' / 1 m 65 fc / 700 Lux at 9.8' / 3 m 23 fc / 250 Lux at 16.4' / 5 m 3200K: 1504 fc / 16,200 Lux at 3.3' / 1 m (with Reflector) 120 fc / 1300 Lux at 9.8' / 3 m (with Reflector) 41 fc / 450 Lux at 16.4' / 5 m (with Reflector) 5600K: 1904 fc / 20,500 Lux at 3.3' / 1 m (with Reflector) 157 fc / 1700 Lux at 9.8' / 3 m (with Reflector) 51 fc / 550 Lux at 16.4' / 5 m (with Reflector) |
| Color Temperature | 2700 to 6500K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy Standard | CRI 96 TLCI 96 CQS 95 |

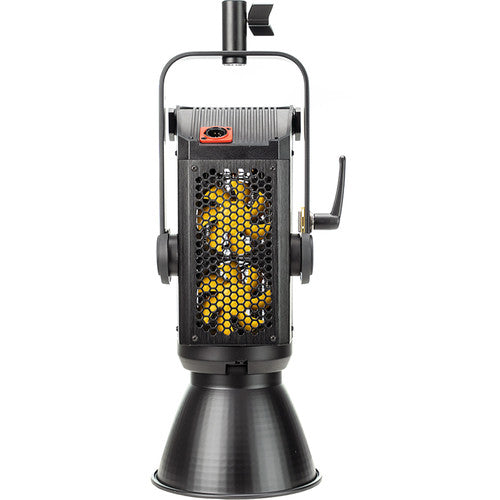

| Cooling System | Fan |
| Dimmable | App-Controlled / Controller Included / DMX (Continuous) • 0 to 100% |
| Beam Angle | 105° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Bowens S |
Connectivity
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Included |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link Functionality: Remote Control *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless Channels | 3 |
| Wireless Groups | 4 |
| Wireless Frequency | 2.4 GHz |
| Wireless Range | 328.1' / 100 m |
| Max DMX Control Channels | 6 |
Power & I/O
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Inputs/Outputs | Light Fixture 1 x XLR 5-Pin Power Input Power Supply/Controller 1 x powerCON Power Input 1 x XLR 5-Pin Power Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Battery Plate Type | 2 x Gold Mount (Built-In) |
| Battery | 2 x Gold Mount Rechargeable, 14.4 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1 x Edison Plug to powerCON Cable (19.7' / 6 m) 1 x XLR 5-Pin Male to XLR 5-Pin Female Cable (9.8' / 3 m) |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 350 W |
Mounting
| Yoke Type | Manually-Operated Yoke (180° Tilt) |
| Fixture Mounting | 1 x 5/8" Receiver (Via Yoke Mount) |
Environmental
| Environmental Protection | No |
General
| Display | LCD |
| Certifications | RoHS, CE, CE RED, KC, PSE, FCC, cTUVus |
| Materials | Aluminum (Housing) |
| Dimensions | 11 x 5 x 3.8" / 27.9 x 12.7 x 9.7 cm (Power Supply/Controller) 13.6 x 11.7 x 8.5" / 34.5 x 29.8 x 21.6 cm (Fixture) |
| Weight | 25.13 lb / 11.4 kg |
Packaging Info
| Package Weight | 25.235 lb |
| Box Dimensions (LxWxH) | 24.8 x 12.5 x 10.9" |
| In The Box | Aputure LS 300x Bi-Color LED Monolight (Gold Mount) |
|---|---|
| MFG Part# | APD0159A2B |
| Condition | New |
×
