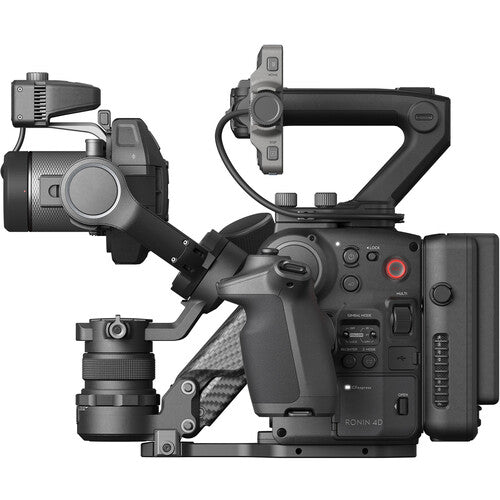

- Ronin 4D Main Body
- Zenmuse X9-8K Gimbal Camera
- DJI DL PZ 17-28mm T3.0 Lens Included
- 4D Raw License, Low-Pass Filter Included
- ProRes Raw to 8K75, 4K120|Raw HQ to 8K30
- Z-Axis Camera/3-Axis Gimbal Stabilizing
- Right Focus/Control, Left Pan/Tilt Grips
Quick Overview

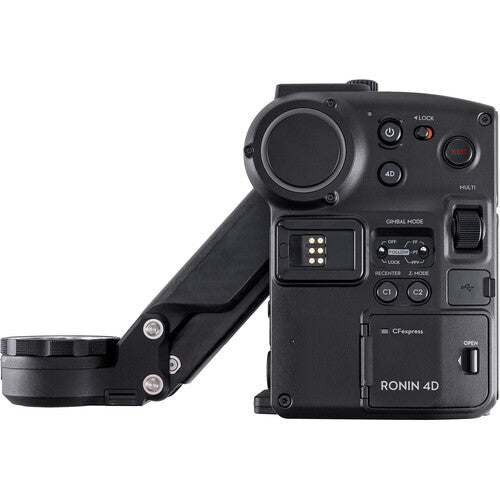

- Ronin 4D Main Body
- Zenmuse X9-8K Gimbal Camera
- DJI DL PZ 17-28mm T3.0 Lens Included
- 4D Raw License, Low-Pass Filter Included
- ProRes Raw to 8K75, 4K120|Raw HQ to 8K30
- Z-Axis Camera/3-Axis Gimbal Stabilizing
- Right Focus/Control, Left Pan/Tilt Grips
- 5.5" 1000 cd/m² Touchscreen Display
- LiDAR Range Finder/Focus Module
- 1TB ProSSD & TB50 Battery with Mounts
Product Description

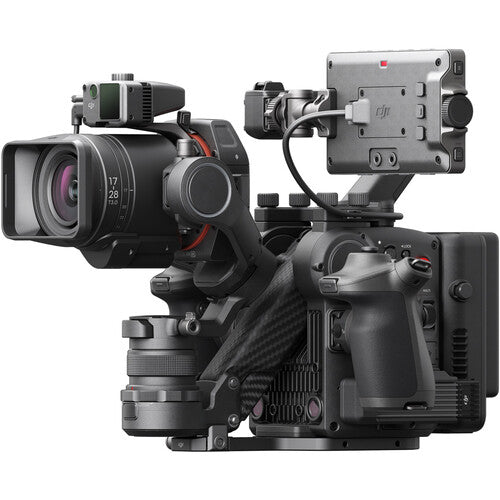

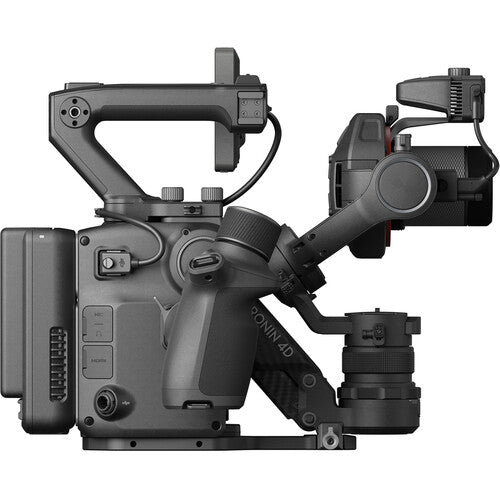

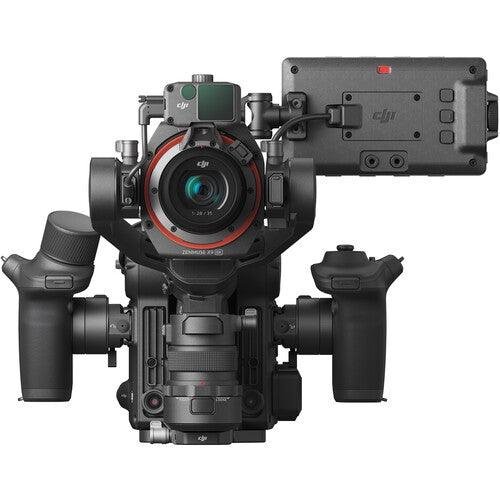

The Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens from DJI combines imaging, stabilization, and focusing in a lightweight, uniquely flexible gimbal/camera rig. This 4D X9-8K version pairs the Ronin 4D gimbal with the Zenmuse X9-8K camera, a DJI DL 17-28mm T3.0 lens, a LiDAR range finder, a low-pass filter, and a raw license; wireless video transmission is available separately. With support for up to 8K 60 fps 17:9 video in Apple ProRes Raw, and 8K 30 fps 17:9 and 8K 75 fps 2.39:1 in ProRes 422 HQ, the X9-8K offers the higher imaging standards required for visual effects, cine-style capture, and broadcasting while reducing your setup time with its all-in-one combination design.
Raw License Key and PROSSD 1TB
The Zenmuse X9-8K supports up to 8K video capture and includes both a raw license key, and the DJI PROSSD 1TB drive, DJI PROSSD mount, and USB-C high-speed data cable required for raw recording.
DL PZ 17-28mm Lens, Low-Pass Filter
In addition to the raw license key, the X9-8K Combo includes a DL lens mount and the DJI DL PZ 17-28mm T3.0 ASPH lens plus a built-in OLPF (optical low-pass filter) for maximum color accuracy.
Included Components
- Left and right control handgrips
- LiDAR range finder
- TB50 battery and charging adapter

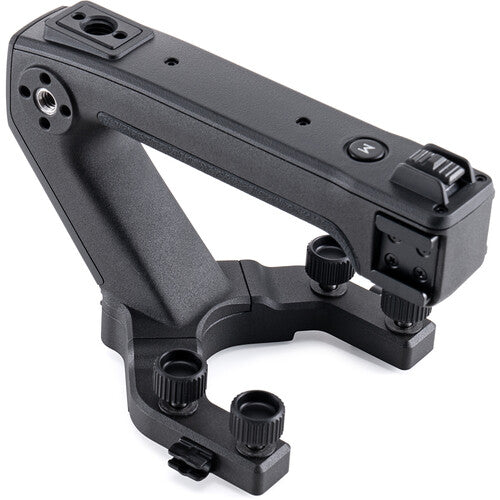

- Top handle

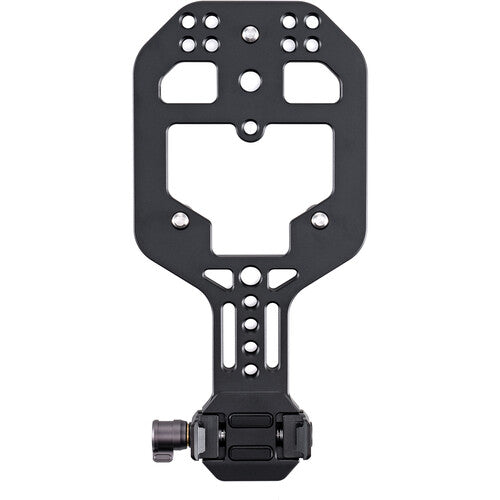

- Baseplate
- Hard carrying case
Separately Available Components
- 7" high-bright, touchscreen monitor
- Wireless video transmitter

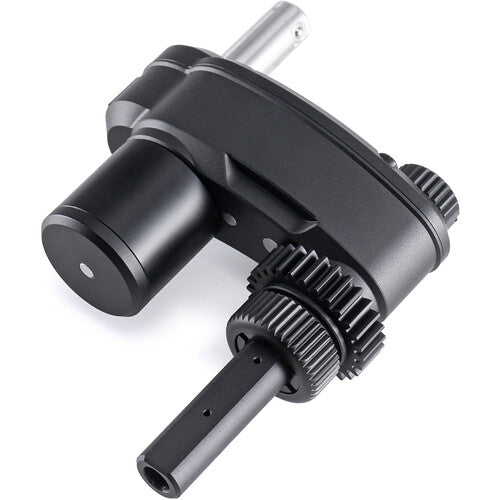

- X9 focus motor
- 3-channel FIZ lens control unit
- Expansion plate with SDI, XLR, and timecode ports
- DJI Leica L and M lens mounts
- Third-party ARRI PL and Sony E lens mounts
Advanced Image Processing with DCCS and ACES
- Support for the industry-standard ACES workflow provides easy compatibility with other cinema cameras.
- The DJI DCCS color science reproduces vivid, natural skin tones in a range of lighting conditions and creates looks that are compatible with ARRI footage.
- The full-frame Zenmuse X9-8Kcamera uses a proprietary chip for advanced processing and high-performance computing.
Advanced 4-Axis Stabilization
- Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves.
- Z-axis stabilization is built into the camera; and 3-axis stabilization is in the gimbal.
- Tilt stabilization uses dual, symmetrical motors.
- Pan and X (roll) axes with additional stiffness buffering.
- Downward ToF (time of flight) sensor.
- Forward and downward-facing dual-vision sensors.
- Built-in IMU (inertial measurement unit) and barometer.
- New and improved stabilization algorithm.

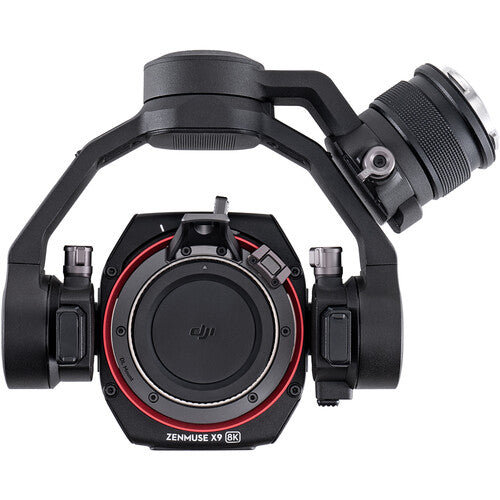

Zenmuse X9-8K Camera with DL Lens Mount
- The D4's DL lens mount supports full-frame capture with DJI's current selection of lightweight, carbon fiber 24, 35, and 50mm lenses.
- Interchangeable lens mounts are available for use with Sony E-mount or Leica M-mount lenses.
- Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses.
- Up to 8K 60 fps ProRes raw in 17:9 full frame or 5.5K 60 fps ProRes raw in 17:9 Super35.
- Up to 8K 30 fps ProRes 422 HQ in 17:9 full frame.
- Up to 8K 75 fps ProRes raw in 2.39:1 full frame.
- Up to DCI 4K 60 fps ProRes 422 HQ or H.264 in 17:9 full-frame or Super35.
- Up to UHD 4K 120 fps ProRes HQ, HQ LT, or H.264 in full frame.
Dual Native ISO
- 800/5000 dual native ISO.
- EI 200 to 12800.
- 14.7 stops of dynamic range produce nuanced imaging under a range of lighting conditions.

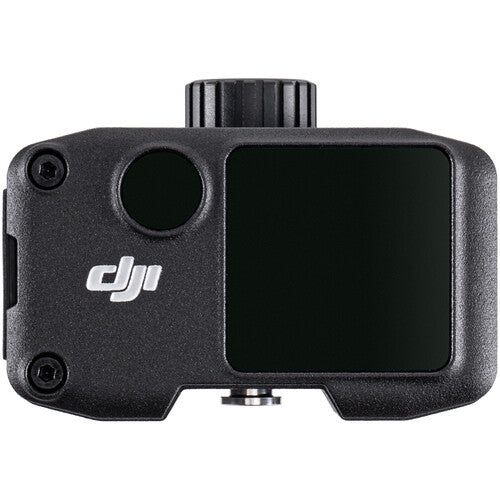

LiDAR Focus Control
- LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range.
- Excellent focusing performance even in low-light environments.
- Focus pulling can be viewed graphically, thanks to a built-in depth meter.
- Intuitive and highly accurate focusing system.
- Modular LiDAR focusing module attached to the front of the D4 rig.
Autofocus Features
- Maintains focus, even when motion blur is produced by fast-moving subjects.
- Separately available focus motor for use with manual lenses.
- Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators.
Automated Manual Focus
- The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus.
- Operators can grab the focus wheel of the right handgrip at any time to manually focus.
- Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes.
In-Camera ND Filters
- Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions.
- Especially handy for outdoor shoots with changing cloud cover.
- Motorized filter system.
ActiveTrack Pro
- DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate.
- ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system.

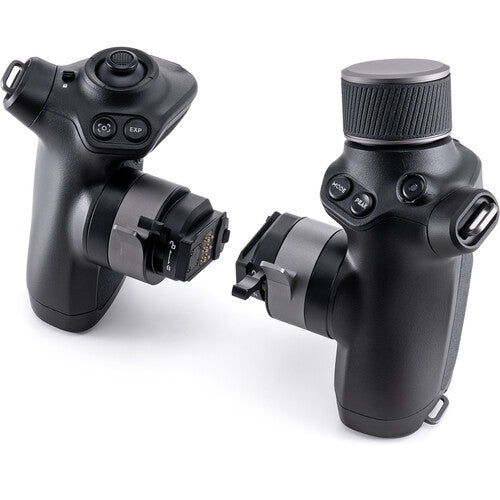

Dual Focus, Iris, and Control Grips
- The right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.).
- The left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode.
Single User or Crew-Assisted Operation
- Top-notch stabilization in a lightweight form.
- Ideal for both solo operators as well as assistant-accompanied shoots.
- Designed to counter footsteps from inexperienced gimbal shooters.
- Works equally well with a single grip, dual grips, shoulder supported, or tripod mounted.
- Sport mode is available with the touch of a button, accommodating faster-paced action.
- Use in standard, underslung, jib, and crane setups.
Media Storage Options
- Requires a ProSSD 1TB drive (included) to capture raw footage.
- USB Type-C port for external recording; no reader needed to offload footage.
- Integrated CFexpress Type-B card slot.

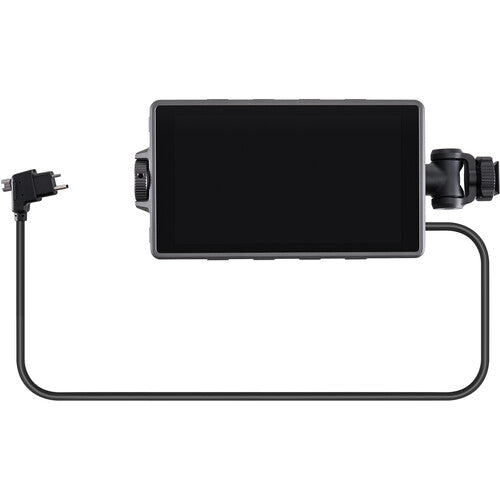

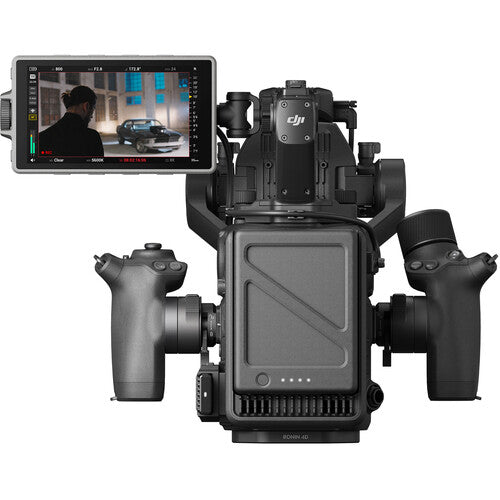

Built-In 5.5" Touchscreen Monitor
- 5.5" 1920 x 1080 monitor.
- 1000 cd/m² display.
- Touchscreen control.
Audio Recording
- Integrated stereo microphones capture dual-channel 24-bit audio.
- Built-in 3.5mm audio input port and XLR port via expander plate.
Power Options
- Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2.
- Each battery provides up to 2.5 hours of capture time.
- Batteries charge fully in approximately 1.5 hours.
- Support auto-heating for cold weather use.
- AC adapter for uninterrupted shooting.
| Lens Mount | DJI DL |
| Sensor Resolution | Effective: 44.7 Megapixel |
| Image Sensor | Full-Frame CMOS |
| ISO Sensitivity Range | 800 to 5000 200 to 12,800 |
| Internal Recording Modes | ProRes 422 HQ 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/120 fps H.264 4:2:0 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94 fps |
| External Recording Modes | SDI/BNC / USB 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) [1 TB Maximum] |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI (Unspecified Signal) Output |
| Mobile App Compatible | No *As of December, 2023: Check with manufacturer for the most up-to-date compatibility |
| Battery Type | DJI TB50 |
Imaging
| Lens Mount | DJI DL |
| Sensor Resolution | Effective: 44.7 Megapixel |
| Image Sensor | Full-Frame CMOS |
| Image Stabilization | Digital, 4-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters |
| Internal Filter Holder | Yes |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/24 Second |
| ISO Sensitivity Range | 800 to 5000 200 to 12,800 |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2000 to 11,000K Presets: Manual |
Gimbal
| Rotation Range | Controllable Range Yaw (Pan): 285° Pitch (Tilt): 210° (-55 to 155°) Roll: 70° (-35 to 35°) Mechanical Range Yaw (Pan): 330° Pitch (Tilt): 250° (-75 to 175°) Roll: 320° (-90 to 230°) |
| Z-Axis Adjustment Range | 5.1" / 130 mm |
| Follow Speed | Using DJI Master Wheels or Pro Force: Pan/Tilt/Roll: 360°/s Using Ronin 4D Handgrip: Pan/Tilt/Roll: 120°/s |
| Load Capacity | 2.1 lb / 960 g |
Video Capture
| Internal Recording Modes | ProRes 422 HQ 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/120 fps H.264 4:2:0 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94 fps |
| External Recording Modes | SDI/BNC / USB 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | HDR-HLG, Rec709 |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 48-Bit LPCM Audio |
| IP Streaming | No |
Still Image Capture
| Image File Format | Raw |
Interface
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) [1 TB Maximum] |
| Internal Memory | 1 TB |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI (Unspecified Signal) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Barrel (12 to 30VDC) Input |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output 1 x Proprietary Monitor Output 1 x BNC (Timecode) |
| Wireless | Wi-Fi Video Output |
| Mobile App Compatible | No *As of December, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | No |
Monitor
| Display Type | Tilting Touchscreen LCD |
| Display Size | 5.5" |
| Resolution | 1920 x 1080 |
Viewfinder
| Type | Optional, Not Included |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Battery Type | DJI TB50 |
| Shoe Mount | 2 x Cold Shoe |
| Accessory Mounting Thread | 2 x 1/4"-20 1 x 3/8"-16 |
| Material of Construction | Aluminum, Carbon Fiber, Magnesium Alloy |
| Dimensions (W x H x D) | 12.2 x 11.4 x 10.9" / 309 x 290 x 277 mm (With Protrusions) 9.3 x 6.3 x 4.5" / 235 x 160 x 115 mm (Without Protrusions) |
| Weight | 10.3 lb / 4.67 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder) 3.2 lb / 1.45 kg (Body Only) 2.29 lb / 1.04 kg (Gimbal) |
| In The Box | DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens |
|---|---|
| MFG Part# | CP.RN.00000351.01 |
| Condition | New |
×
