- Zenmuse X9-8K Camera
- Interchangeable DL Lens Mount Included
- Requires Ronin 4D Main Body & 8K License
- Up to 8K30 ProRes 422 HQ with License
- Built-in ND.03 to ND2.7 Filters
- 800/5000 Dual Native ISO
Quick Overview
- Zenmuse X9-8K Camera
- Interchangeable DL Lens Mount Included
- Requires Ronin 4D Main Body & 8K License
- Up to 8K30 ProRes 422 HQ with License
- Built-in ND.03 to ND2.7 Filters
- 800/5000 Dual Native ISO
- Lens Mount & Body Caps, Case Included
- Compatible with Ronin 4D Ecosystem
Product Description

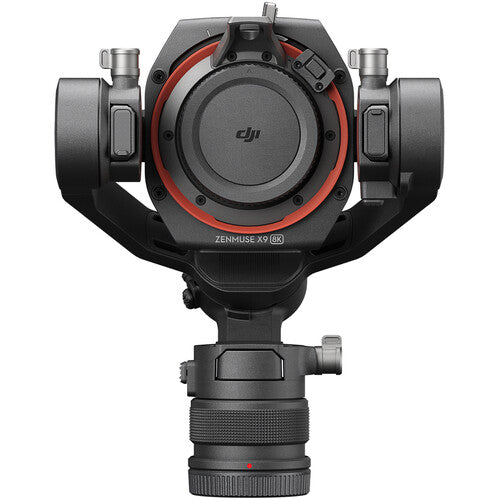

Zenmuse X9-8K Camera
The Zenmuse X9-8K Gimbal Camera from DJI provides a way for existing Ronin 4D-6K owners to upgrade their capture with 8K recording options and an ACES-certified workflow. Mount the X9-8K on your main 4D body, add an 8K raw license, and update it to the latest firmware to access 17:9 capture rates up to 8K60 video in Apple ProRes Raw and 8K30 in ProRes 422 HQ. The resulting 4D X9-8K rig offers the higher imaging standards required for visual effects, cine-style capture, and broadcasting while reducing your setup time with its all-in-one combination design.
Advanced Image Processing with DCCS and ACES
- The DJI DCCS color science reproduces vivid, natural skin tones in a range of lighting conditions and creates looks that are compatible with ARRI footage.
- Support for the industry-standard ACES workflow provides easy compatibility with other cinema cameras.
- The full-frame Zenmuse X9-8K camera uses a proprietary chip for advanced processing and high-performance computing.
ProRes Raw, 422 HQ, and H.264 Capture
- Requires an 8K raw license and upgrade to the latest firmware.
- Capture up to 8K60 or 5.5K60 ProRes raw in 17:9 full frame or 8K75 in 2.39:1 full frame.
- Capture up to 8K30 ProRes 422 HQ video in a 17:9 full frame.
- Capture up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super35.
Zenmuse X9-8K Camera with DL Lens Mount
- The X9-8K camera's DL lens mount supports full-frame capture with DJI's current selection of lightweight, carbon fiber 24, 35, and 50mm lenses.
- Interchangeable lens mounts are available for use with Sony E-mount or Leica M-mount lenses.
- Supports ultrawide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses.
- Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions.
- Especially handy for outdoor shoots with changing cloud cover.
- Motorized filter system.
Dual Native ISO
- 800/5000 dual native ISO.
- EI 200 to 12800.
- 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions.
| Lens Mount | DJI DL |
| Sensor Resolution | Effective: 44.7 Megapixel |
| Image Sensor | Full-Frame CMOS |
| Image Stabilization | Digital, 4-Axis |
| ISO Sensitivity Range | 800 to 5000 200 to 12,800 |
| Internal Recording Modes | ProRes RAW DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00 fps UHD 8K (8192 x 3424) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/75 fps 5568 x 2952 at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00 fps ProRes 422 HQ DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/30.00 fps UHD 8K (8192 x 3424) at 23.98/24.00/25/29.97/30.00 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/96/100/120 fps H.264 DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/96/100/120 fps |
| External Recording Modes | No |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) |
| Video I/O | 1 x HDMI 2.0 Output 1 x Proprietary (Unspecified Signal) Monitor Output |
| Mobile App Compatible | No *As of December, 2023: Check with manufacturer for the most up-to-date compatibility |
| Battery Type | DJI TB50 |
Imaging
| Lens Mount | DJI DL |
| Lens Communication | Yes |
| Sensor Resolution | Effective: 44.7 Megapixel |
| Image Sensor | Full-Frame CMOS |
| Image Stabilization | Digital, 4-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters |
| Internal Filter Holder | Yes |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/24 Second |
| ISO Sensitivity Range | 800 to 5000 200 to 12,800 |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2000 to 11,000K Presets: AWB, Manual |
Video Capture
| Internal Recording Modes | ProRes RAW DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00 fps UHD 8K (8192 x 3424) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/75 fps 5568 x 2952 at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00 fps ProRes 422 HQ DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/30.00 fps UHD 8K (8192 x 3424) at 23.98/24.00/25/29.97/30.00 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/96/100/120 fps H.264 DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/30.00/48.00/50/59.94/60.00/72/96/100/120 fps |
| External Recording Modes | No |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | HDR-HLG, Rec709, D-Log |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | No |
Interface
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) |
| Video I/O | 1 x HDMI 2.0 Output 1 x Proprietary (Unspecified Signal) Monitor Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x LEMO 6-Pin (12 to 30VDC) Input |
| Other I/O | 1 x USB-C Data |
| Wireless | No |
| Mobile App Compatible | No *As of December, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | No |
Monitor
| Display Type | Articulating Touchscreen LCD |
| Display Size | 5.5" |
| Resolution | 1920 x 1080 |
| Type | Optional, Not Included |
Focus
| Focus Type | Auto and Manual Focus |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | 14 to 104°F / -10 to 40°C |
General
| Battery Type | DJI TB50 |
| Shoe Mount | No |
| Tripod Mounting Thread | 2 x 3/8"-16 Female (Bottom) 5 x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread | 1 x 3/8"-16 2 x 1/4"-20 |
| Material of Construction | Aluminum, Carbon Fiber, Magnesium Alloy |
| Dimensions (W x H x D) | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |

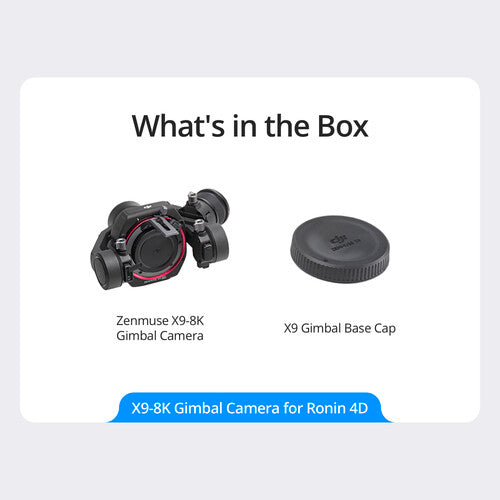

| In The Box | DJI Zenmuse X9-8K Gimbal Camera |
|---|---|
| MFG Part# | CP.RN.00000341.01 |
| Condition | New |
×
