- ±5° Stabilization
- Works Pointed in Any Direction
- Waterproof & Fogproof
- Phase-Coated BAK4 Roof Prisms
- 3.4° Angle of View
Quick Overview
- ±5° Stabilization
- Works Pointed in Any Direction
- Waterproof & Fogproof
- Phase-Coated BAK4 Roof Prisms
- 3.4° Angle of View
- Full Fujinon EBC Multi-Coatings
- Handgrip for Left- or Right-Hand Use
- Optional Haze Eyepiece Filters
- Peel-Down-Type Eyecups
- Uses Batteries or DC Adapter
Product Description

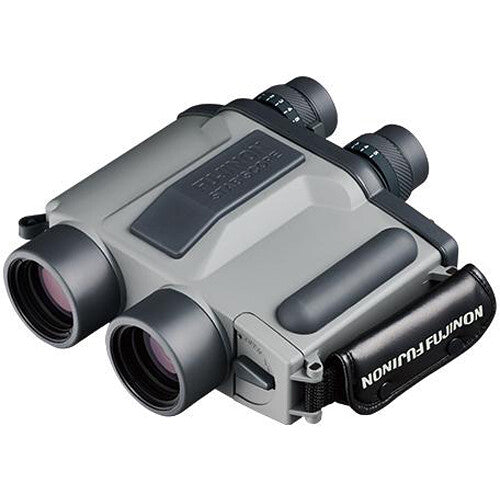

Fujinon 16x40 S1640D Stabiscope Image-Stabilized Binoculars
The Fujinon 16x40 S1640D Stabiscope binoculars feature advanced gyroscopic stabilization, effectively counteracting movement from shaky hands, vibrations, or fast-moving vehicles. Unlike conventional stabilizers, the Stabiscope’s ±5° compensation functions in any orientation, providing stable viewing even when aimed straight up, down, or at extreme angles. This makes it an ideal choice for law enforcement, aviation, and marine applications, particularly helicopter surveillance.
Designed for long-range observation, the 16x magnification delivers sharp, detailed views, with a minimum focusing distance of 167 feet.
Exceptional Stability & Optical Precision
- ±5° all-direction image stabilization minimizes motion blur in any position
- 16x magnification for superior long-distance viewing
- 40mm objective lenses enhance brightness and clarity
- Phase-coated BAK4 roof prisms deliver sharp details and improved contrast
- Fujinon EBC multi-coated optics maximize light transmission for accurate color reproduction
- Interpupillary adjustment (60-70mm) for a custom fit
- ±5 dioptric correction for precision focusing
Versatile Power Options
- Compatible with 12-32 VDC electrical systems used in land, sea, and air vehicles
- Also operates on four AA batteries or a single 2CR5 battery for portable use
Durable & User-Friendly Design
- 100% waterproof and fogproof for all-weather reliability
- Rubber-armored housing for durability and a secure grip
- Ambidextrous design for left- or right-hand use
- Peel-down eyecups for added comfort
- Compatible with optional haze and polarizing filters for enhanced visibility
Perfect for aerial surveillance, marine navigation, and professional field operations, the Fujinon S1640D Stabiscope binoculars provide exceptional stabilization, long-range clarity, and rugged durability for demanding environments.
Fujinon Stabiscope 16x40 Specs
| Prism Type | Roof (BAK4) |
| Magnification | 16x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 3.4° (Actual) |
| Field of View | 178.5' @ 1000 yd / 59.5 m @ 1000 m |
| Exit Pupil Diameter | 2.5 mm |
| Magnification | 16x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 3.4° (Actual) |
| Field of View | 178.5' @ 1000 yd / 59.5 m @ 1000 m |
| Minimum Focus Distance | 167.3' / 51 m |
| Exit Pupil Diameter | 2.5 mm |
| Eye Relief | 12 mm |
| Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" |
| Diopter Adjustment | -5 to +5 |
| Focus Type | Individual |
| Stabilization Freedom | +/- 5° |
| Fogproof | Yes |
| Environmental Resistance | Water-Resistant (Unrated) |
| Battery | 4x AA or 1x 2CR5 |
| Dimensions | 8.3 x 3.5 x 7.9" / 21.1 x 8.9 x 20.1 cm |
| Weight | 3.92 lb / 1.78 kg |
| Package Weight | 10.5 lb |
| Box Dimensions (LxWxH) | 14.25 x 11 x 6.5" |
| In The Box |
|
|---|
