- For Studio, Film & TV Production
- Output: 17,620 Lux at 3.3' (5600K)
- 2700-6500K
- 23.7 x 12.1" Panel; AC/DC Operation
- CRI 95 | TLCI 97
Quick Overview
- For Studio, Film & TV Production
- Output: 17,620 Lux at 3.3' (5600K)
- 2700-6500K
- 23.7 x 12.1" Panel; AC/DC Operation
- CRI 95 | TLCI 97
- Onboard, DMX/RDM & Bluetooth App Control
- 12 Special Effects; 0-100% Dimming
- Silent Passive Cooling Design
- Includes Standard & Lite Diffuser

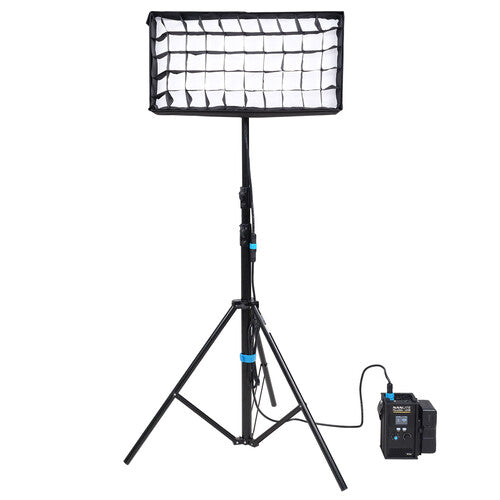

- Includes Softbox & Eggcrate
Product Description

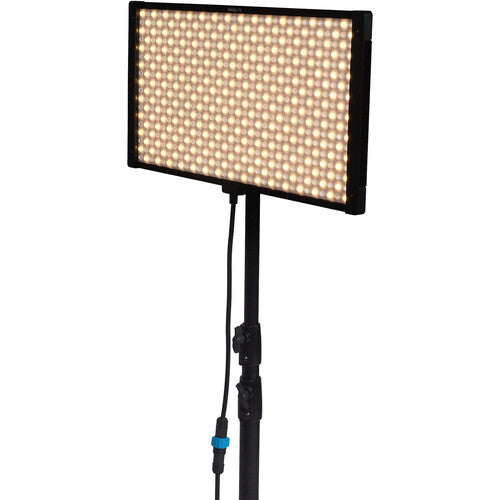

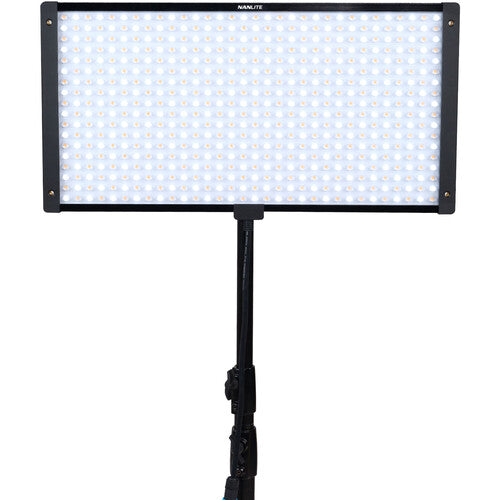

Thin, lightweight, and bright, this 23.7 x 12.1" PavoSlim 120B Bi-Color LED Panel from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Offering a wide variable color temperature range of 2700 to 6500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. The panel's high CRI/TLCI ratings of 95/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Twelve built-in special effects are included for CCT loop, intensity loop, flash, pulse, storm, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.
- Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 17,620 lux at 3.3'.
- Variable color temperature range of 2700 to 6500K and 0 to 100% dimming.
- High CRI/TLCI ratings of 95/97 provide high color accuracy and rendering.
- 12 built-in special effects for CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
- Multiple presets for LEE filters.
- Silent passive cooling for working on sets with sound recording

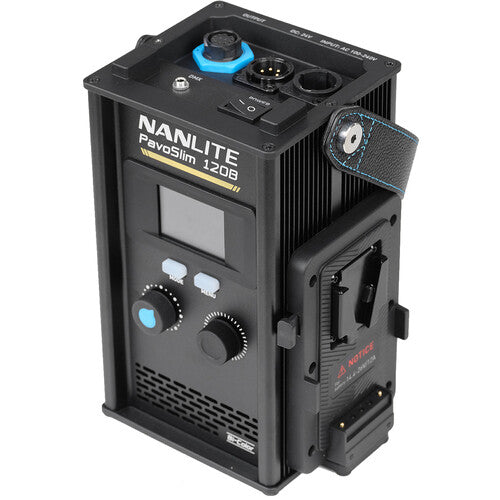

- Built-in battery plates for two V-mount batteries.
- DMX/RDM port, Bluetooth, and wireless RF control options.
- 4-pin locking plate design to combine panels together to make a larger light source.

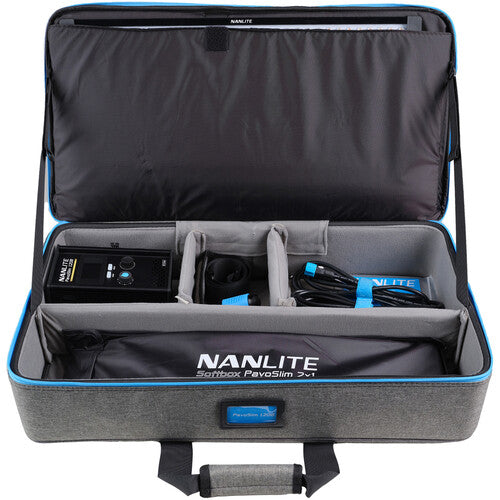

- Includes two diffusers, a softbox, an eggcrate, and a soft case.
- Dual-voltage design for worldwide use.
Nanlite PavoSlim 120B Specs
| Item Type | 1 x LED Array LED Light Panel |
| Included Light Modifier | 1 x Softbox 1 x Grid/Louver |
| Included Storage Case | 1 x Case (Per Light) |
| Photometrics | 60° at 5600K: 1636 fc / 17,620 Lux at 3.3' / 1 m (Unmodified) |
| Color Temperature | 2700 to 6500K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 95 TLCI 97 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Beam Angle | 60° Unmodified |
| Front Accessory Mount | No |
| Wireless Remote Control Type | Bluetooth (Nanlink) Proprietary Wireless *Remote Not Included Wireless DMX *Remote Not Included Wireless CRMX *Remote Not Included |
| Power Source | AC Power (Cable Included) |
| Battery Plate Type | 2 x V-Mount (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 14.4 to 26 VDC |
| Fixture Mounting | 1 x 5/8" Receiver (Via Hardware) |
| Item Type | 1 x LED Array LED Light Panel |
| Included Light Modifier | 1 x Softbox 1 x Grid/Louver |
| Included Filters | Diffusion, Soft Diffusion |
| Included Storage Case | 1 x Case (Per Light) |
| Photometrics | 60° at 5600K: 1636 fc / 17,620 Lux at 3.3' / 1 m (Unmodified) |
| Color Temperature | 2700 to 6500K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 95 TLCI 97 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | Passive |
| Beam Angle | 60° Unmodified |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | No |
| Wireless Remote Control Type | Bluetooth (Nanlink) Proprietary Wireless *Remote Not Included Wireless DMX *Remote Not Included Wireless CRMX *Remote Not Included |
| Mobile App Compatible | Yes: Android & iOS App Name: Nanlink Functionality: Adjust Settings, Remote Control, Setup *As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Source | AC Power (Cable Included) |
| Battery Plate Type | 2 x V-Mount (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 14.4 to 26 VDC |
| Inline Switch | No |
| Power Pass-Thru | No |
| Fixture Mounting | 1 x 5/8" Receiver (Via Hardware) |
| Dimensions | 23.7 x 12 x 0.7" / 60.2 x 30.6 x 1.9 cm (Fixture) |
| Weight | 3.64 lb / 1.65 kg (Fixture) |
| Package Weight | 20 lb |
| Box Dimensions (LxWxH) | 28.25 x 16.5 x 7.5" |

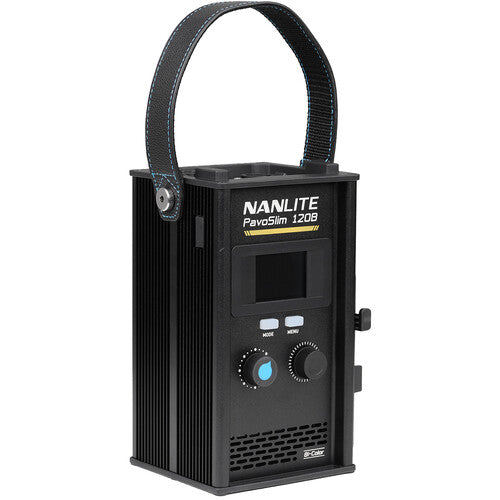

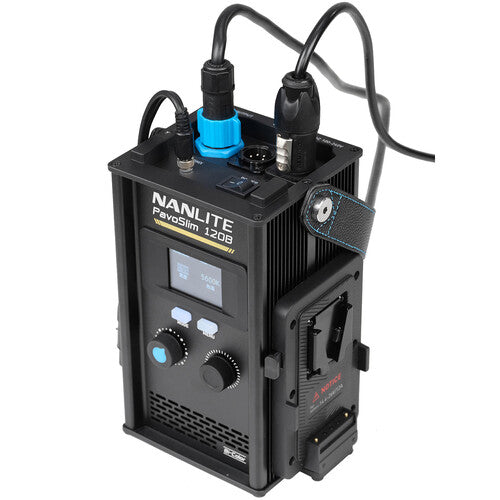

| In The Box | Nanlite PavoSlim 120B Bi-Color LED Panel, Control Unit, Universal Holder, DC Connection Cable, AC Power Cable, Lite Diffuser, Standard Diffuser, Eggcrate, Softbox, Limited 2-Year Manufacturer Warranty, Registration Extension: 1-Year |
|---|---|
| MFG Part# | PS120B |
| Condition | New |
