- For Photo, Video & Film Production
- Output: 991 Lux at 3.3' for Each Light
- 2700-12,000K CCT; RGB Mode
- Onboard, Wireless, DMX & App Control
- CRI 97 | TLCI 98
- 15 Special Effects & 10 Pixel Effects
Quick Overview
- For Photo, Video & Film Production
- Output: 991 Lux at 3.3' for Each Light
- 2700-12,000K CCT; RGB Mode
- Onboard, Wireless, DMX & App Control
- CRI 97 | TLCI 98
- 15 Special Effects & 10 Pixel Effects
- Built-In Rechargeable Battery; AC Power
- Three 1/4"-20 Receivers for Mounting
- Compatible with Optional Remote Control
- Includes Adapters, Clips & Bag
Product Description

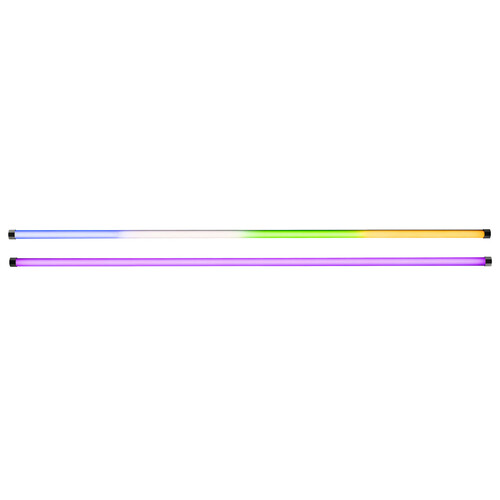

Nanlite PavoTube II 60X RGB LED Pixel Tube Light (8', 2-Light Kit)
Studio Quality Lighting and Effects Anywhere
The 8' PavoTube II 60X 2-Light Kit from Nanlite offers expansive color and power options in two portable, versatile light tubes. Each tube light outputs up to 991 lux at 3.3' (5600K) with an impressive variable color temperature range from a warm 2700K to an icy cool 12,000K to easily match ambient light conditions or spark creativity. Beyond the expanded Kelvin range, the RGBWW capability allows hue, saturation, and intensity adjustments, generating literally millions of available custom colors.
Next-Generation LED Light
Nanlite drew on feedback from PavoTube owners across the world to evolve their LED tube design.
Enhancements to the PavoTube II include:
- Brighter output from a larger illumination area with more uniform diffusion
- Upgraded control panel with locking buttons
- DMX compatibility
- Enhanced app control
Customizable Creative Lighting Effects
- The PavoTube II has integrated, customizable lighting and pixel-based effects.
- Effects include hue loop, CCT loop, INT loop, CCT flash, hue flash, CCT pulse, hue pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.
- Pixel-based effects include hue loop, CCT loop, INT loop, multi-color, gradient, scrolling, marching, flame, rainbow, and driving.
- This library opens the door to a world of creative lighting effects for video and television production, and even live events.
Bluetooth and 2.4 GHz Wireless Operation

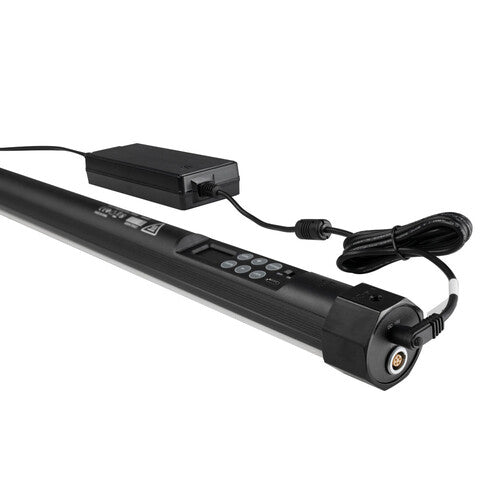

- Light settings can be adjusted using the integrated analog control buttons and LCD screen, or with the NANLINK mobile app for iOS and Android.
- The app allows adjustments of color and brightness settings and more.
- In addition, 2.4 GHz provides control with the separately available WS-TB-1 transmitter box for more elaborate setups, or with hardware remotes like the NANLINK WS-RC-C2.
- DMX/RDM control is also supported for advanced users.
Multi-Voltage AC Operation and Integrated Li-Ion Battery
- Powered by an internal 8800mAh li-ion battery, the PavoTube II 60X can run completely untethered for almost two hours at full brightness.
- Full battery recharge is achieved in 5 hours and 30 minutes via the included AC adapter, which can also power the light during longer shoots.
- The multi-voltage AC adapter allows the PavoTube to be used in studio spaces or locations anywhere in the world.
- Two 15V power adapters are supplied with power cables and safety straps.
Robust Metal Housing
- The PavoTube II has a classic and traditional T12 form factor, making it easy to conceal in narrow spaces.
- The durable metal housing makes worrying about an accidental drop or risky light placements a thing of the past.
- The chassis features three integrated 1/4"-20 sockets, four clips, and four eyebolts for a wide range of mounting possibilities.
- The PavoTube II packs studio-quality lighting into a hardy, go-anywhere package.

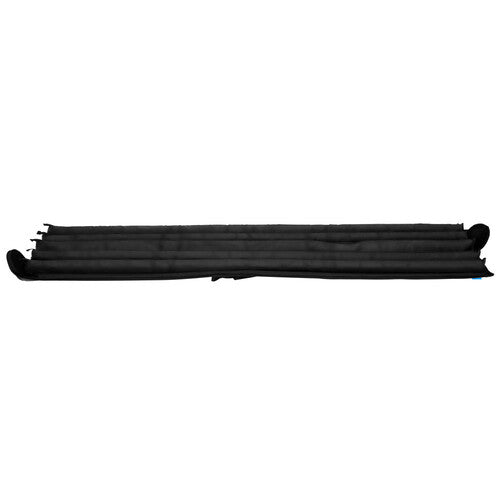

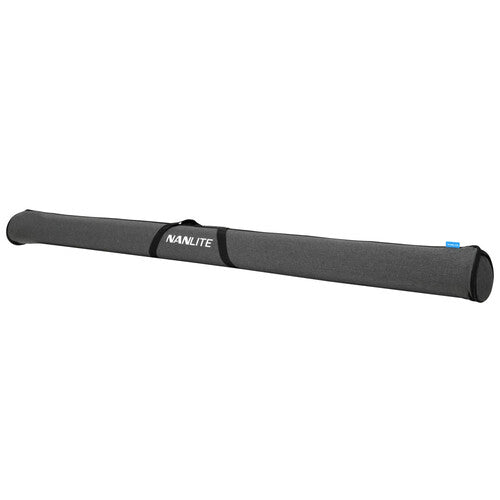

Nanlite PavoTube II 60X Pixel Tubes Carry Bag
This PavoTube II 60X Pixel Tubes Carry Bag from Nanlite holds and protects up to four 8' PavoTube II 60X LED Pixel Tube Lights during storage and transport. The bag will also accommodate AC adapters for the lights as well as basic accessories. It has a center handle and light padding throughout, with thick padding at both ends. The interior has individual zippered chambers for each tube light.
Transport Long Tube Lights
Designed to hold up to four 8' PavoTube II 60X LED Pixel Tubes, AC adapters, and basic accessories, the bag is also compatible with other tube lights.
Designed for Production
The interior has dedicated zippered chambers for each tube light. The bag was designed to be unzipped completely and laid flat, making it easier to access what you need and ultimately saving you time on set.
Construction
- Made from Oxford fabric with PE foam
- Bag Length: 93"
- Bag Diameter: 6.7"
- Centered handle
- Light padding throughout
- Thicker padding at the ends
Nanlite PavoTube II 60X RGB LED Pixel Tube Light (8', 2-Light Kit) Specs
Key Specs
| Item Type | 2x LED Light Tube/Wand |
| Included Storage Case | 1x Case (Fits All Included Lights) |
| Photometrics | 3200K: 86 fc / 928 Lux at 3.3' / 1 m* 32 fc / 345 Lux at 6.6' / 2 m 17 fc / 184 Lux at 9.8' / 3 m 5600K: 92 fc / 991 Lux at 3.3' / 1 m* 34 fc / 369 Lux at 6.6' / 2 m 18 fc / 194 Lux at 9.8' / 3 m *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 2700 to 12,000K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 96 TLCI 98 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Not Included |
| Power Source | AC to DC Adapter (Included) Battery (Built-In) |
| Battery | Per Light: 1x Rechargeable (Built-In) • 117-Minute Runtime at Maximum Brightness • 5.5-Hour Charge Time |
| DC Input Power | 15 VDC |
| Power Consumption | 36 W |
| Fixture Mounting | 2x 1/4"-20 Female Thread 2x 1/4"-20 Female Thread (Via Mounting Clip) |
Light Fixture
| Item Type | 2x LED Light Tube/Wand |
| Included Storage Case | 1x Case (Fits All Included Lights) |
| Lumens | 1278 (at 5600K) |
| Photometrics | 3200K: 86 fc / 928 Lux at 3.3' / 1 m* 32 fc / 345 Lux at 6.6' / 2 m 17 fc / 184 Lux at 9.8' / 3 m 5600K: 92 fc / 991 Lux at 3.3' / 1 m* 34 fc / 369 Lux at 6.6' / 2 m 18 fc / 194 Lux at 9.8' / 3 m *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 2700 to 12,000K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 96 TLCI 98 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | Passive |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
Connectivity
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Not Included |
| Mobile App Compatible | Yes: Android & iOS App Name: NANLINK Functionality: Remote Control |
| Wireless Frequency | 2.4 GHz |
Power & I/O
| Power Source | AC to DC Adapter (Included) Battery (Built-In) |
| Inputs/Outputs | 1x Barrel / Coax Power Input (15 to 24 VDC) 1x Proprietary 5-Pin DMX Input/Output *Adapter Required (Not Included) 1x USB-C Service Input |
| Battery | Per Light: 1x Rechargeable (Built-In) • 117-Minute Runtime at Maximum Brightness • 5.5-Hour Charge Time |
| Battery Charging | AC to DC Adapter (Included) |
| DC Input Power | 15 VDC |
| Included Adapter / Cable | 1x USA Type-A/B to Barrel / Coax AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 36 W |
Mounting
| Fixture Mounting | 2x 1/4"-20 Female Thread 2x 1/4"-20 Female Thread (Via Mounting Clip) |
General
| Display | LCD |
| Materials | Metal (Housing) |
| Dimensions | 84.7 x 1.7" / 215.1 x 4.3 cm (Fixture) |
| Weight | 13.2 lb / 6 kg |
Packaging Info
| Package Weight | 26 lb |
| Box Dimensions (LxWxH) | 101.3 x 7.2 x 4" |
Nanlite PavoTube II 60X Pixel Tubes Carry Bag Specs
Key Specs
| Color | Black |
| Carry/Transport Options | Handle |
| Type of Closure | Zipper |
| Dimensions | Exterior 93 x 6.7" / 236.2 x 17 cm |
| Weight | 5.1 lb / 2.3 kg |
| Carry/Transport Options | Handle |
| Type of Closure | Zipper |
Features
| ATA Compliant | No |
| Pressure/Purge Valve | No |
| Security Lock | No |
General
| Materials | Exterior: Fabric |
| Padded Interior | Yes |
| Dimensions | Exterior 93 x 6.7" / 236.2 x 17 cm |
| Weight | 5.1 lb / 2.3 kg |
Packaging Info
| Package Weight | 7.53 lb |
| Box Dimensions (LxWxH) | 22.9 x 15.4 x 9.9" |

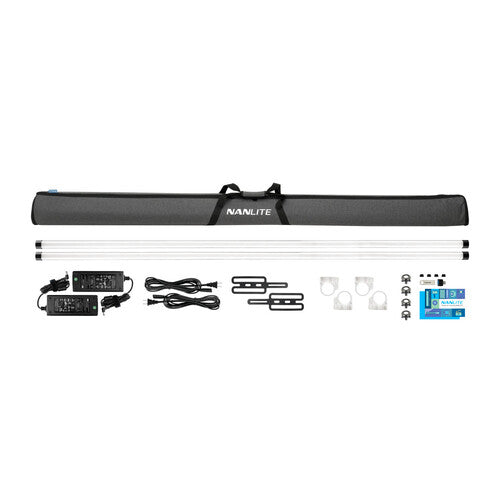

| In The Box | Nanlite PavoTube II 60X RGB LED Pixel Tube Light (8', 2-Light Kit), 2 x PavoTube II 60X RGB LED Pixel Tube Light, 2 x Power Cable (9.8'), 2 x 15V Power Adapter, 2 x Power Adapter Safety Strap, 4 x T-12 Clip with Two 1/4"-20 Receiver, 4 x Nanlite Eyebolt for PavoTube II LED Tubes, Limited 2-Year Manufacturer Warranty, Registration Extension: 1-Year Nanlite PavoTube II 60X Pixel Tubes Carry Bag, Limited 2-Year Manufacturer Warranty, Registration Extension: 1-Year |
|---|---|
| MFG Part# | PT60X2KITS |
| Condition | New |
×
