- For Precise Camera-to-Subject Focusing
- Rotating Clamp with Quick Adjustment
- 7.9" Length
- 7.1" Travel Length
- Load Capacity: 11 lb
- Collapsible Thumb-Screw Knob
- Removable Rubber-Tipped Feet
- CNC Machined Aluminum Construction
Quick Overview
- For Precise Camera-to-Subject Focusing
- Rotating Clamp with Quick Adjustment
- 7.9" Length
- 7.1" Travel Length
- Load Capacity: 11 lb
- Collapsible Thumb-Screw Knob
- Removable Rubber-Tipped Feet
- CNC Machined Aluminum Construction
Product Description

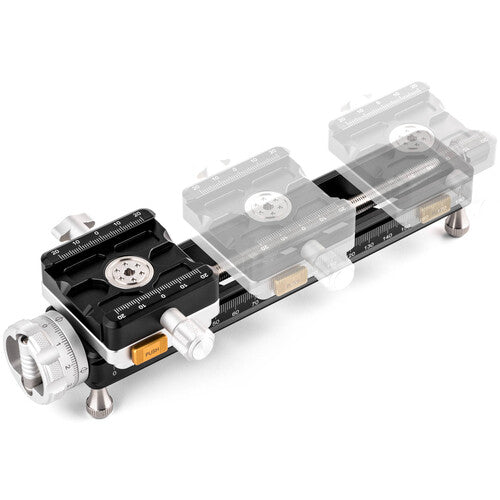

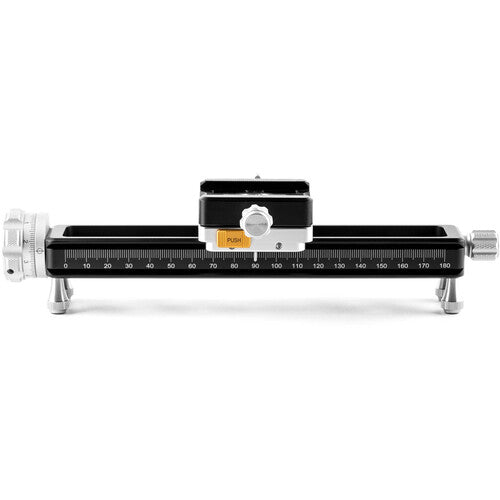

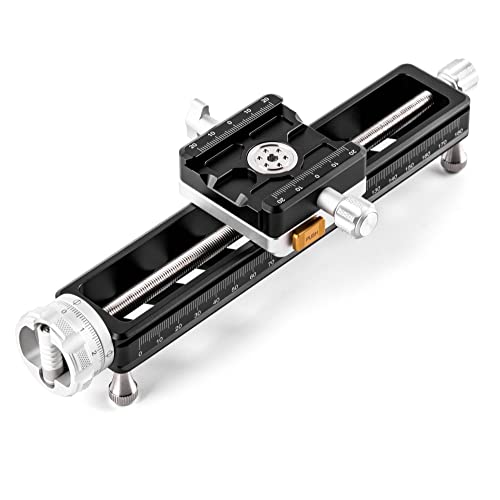

The compact Macro Focusing Rail NM-200S from NiSi provides precision camera-to-subject distance control for macro photography using camera/lens combinations up to 11 lb. It's 7.9" in length and features a 7.1" travel length. The integrated Arca-type quick release set rotates a full 360° for full control of camera placement and securely locks with a knob. An Arca-type dovetail runs the length of the chassis, allowing it to be clamped directly to most Arca-type tripod quick release receivers. The rotating 360° clamp features a push button release for quick adjustments. The dovetail also allows one NM-200S rail to be stacked on another for dual-axis movement. The rail comes complete with four rubber-tipped feet for tabletop use.
The thumb screw focusing knob has a folding handle for more precise control, an engraved movement scale, and a travel range of 1mm per rotation, which makes macro work and focus stacking a snap.
- Rotating Clamp with Quick Adjustment
- Stackable for dual axis movement
- Useful for focus stacking

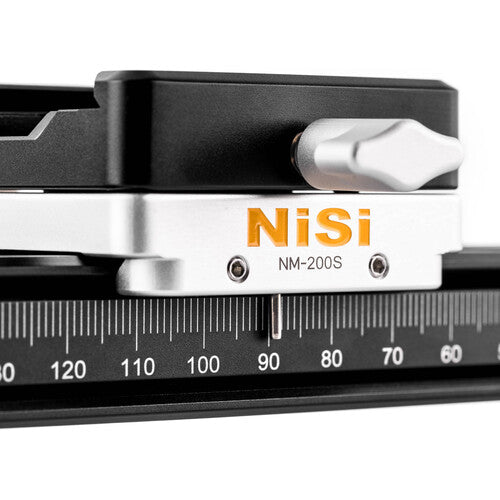

- Engraved index scale for fine adjustment
- Collapsible thumb-screw knob
- Removeable rubber tipped feet for tabletop use
- Long plate suitable for telephoto lenses
- Safety screws
- Integrated strap loop
- Engraved index mark
- D-ring tightening knob
- Ergonomic design
NiSi NM-200S Specs
| Environmental Protection | No |
| Load Capacity | 11 lb / 5 kg |
| Material of Construction | Hard Anodized Aluminum |
| Dimensions | 7.9" / 200 mm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 1.415 lb |
| Box Dimensions (LxWxH) | 10.5 x 5.1 x 2.9" |
| In The Box | NiSi Macro Focusing Rail NM-200S with 360° Rotating Clamp (7.9" Length) 4 x Removable Foot 2 x Quick Release Plate Safety Screw Arca-Type Quick Release Plate 1/4"-20 to 3/8"-16 Tripod Bushing Storage Pouch Limited 1-Year Manufacturer Warranty |
|---|---|
| MFG Part# | NISI-NM-200S |
| Condition | New |
