- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 14-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF
- 5.76m-Dot OLED Electronic Viewfinder
Quick Overview
- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 14-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF

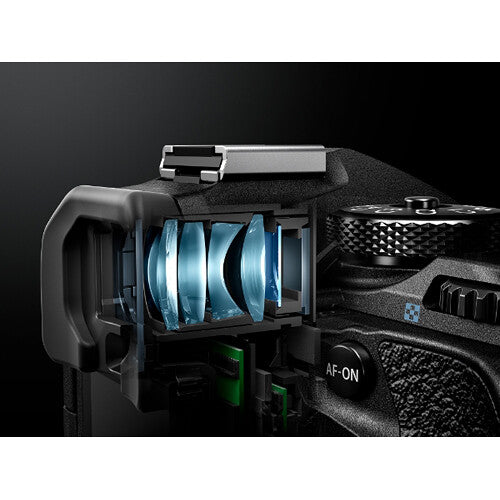

- 5.76m-Dot OLED Electronic Viewfinder
- 3.0" 1.62m-Dot Swivel Touchscreen LCD

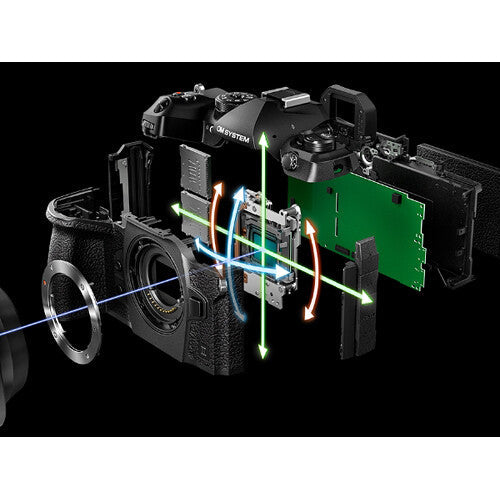

- 5-Axis In-Body Image Stabilization
- High-Res Shot, Live ND & Composite Modes

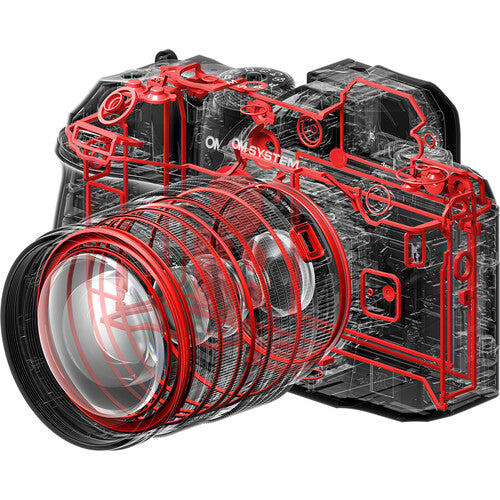

- IP53 Weather-Sealed & Freezeproof Design
- Dual UHS-II SD Card Slots
Product Description
Among the noteworthy upgrades of the OM-1 Mark II are enhanced AI subject detection for humans, live graduated neutral density filters, updated menu configuration, 14-bit raw output, and rubberized dials.
- 20% increase in image stabilization and 8.5 EV stops of compensation
- Rubberized dials for a more tactile feel
- Menu button can be programmed to Delete, making it so you don't have to remove your left hand from your lens
- Triple the amount of tones in your images with 14-bit raw output
- Improved blackout-free sequential shooting
- Vertical video support
- Live GND8 and ND128 Filtering
- Improved Human AI subject detection AF
Vertical video is now available, opening up more compositional options when shooting and saving you time in post production.
3.0" 1.62m-dot swivel touchscreen LCD to enable an incredible range of viewing capabilities while capturing
Dual UHS-II SD card slots for extended shooting situations
Focus stacking up to 15 shots
Focus bracketing up to 999 shots
- Humans
- Birds
- Dogs
- Cats
- Cars
- Motorcycles
- Airplanes
- Helicopters
- Trains
OM SYSTEM OM-1 Mark II Specs
Lens Mount | Micro Four Thirds |
Sensor Resolution | Actual: 22.9 Megapixel Effective: 20.4 Megapixel |
Image Sensor | 17.4 x 13 mm (4/3"-Type) MOS |
Image Stabilization | Sensor-Shift, 5-Axis |
ISO Sensitivity Range | Photo/Video 200 to 102,400 in Manual, Auto Mode |
Continuous Shooting | Mechanical Shutter Up to 10 fps |
Internal Recording Modes | H.264/MOV/MPEG-4 AVC 4096 x 2160 at 24.00/25/30.00/50/60.00 fps 3840 x 2160 at 24.00/25/30.00/50/60.00 fps 1920 x 1080 at 24.00/25/30.00/50/60.00 fps |
External Recording Modes | No |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Input |
Power I/O | 1x USB-C Input/Output |
Other I/O | 1x Built-In Cable with Micro-USB |
Wireless | 2.4 / 5 GHz Wi-Fi |
Display Type | Articulating Touchscreen LCD |
Battery Type | 1x BLX-1 Rechargeable Lithium-Ion |
Lens Mount | Micro Four Thirds |
Sensor Resolution | Actual: 22.9 Megapixel Effective: 20.4 Megapixel |
Image Sensor | 17.4 x 13 mm (4/3"-Type) MOS |
Sensor Crop (35mm Equivalent) | Crop Factor: 2x |
Image Stabilization | Sensor-Shift, 5-Axis |
Capture Type | Stills & Video |

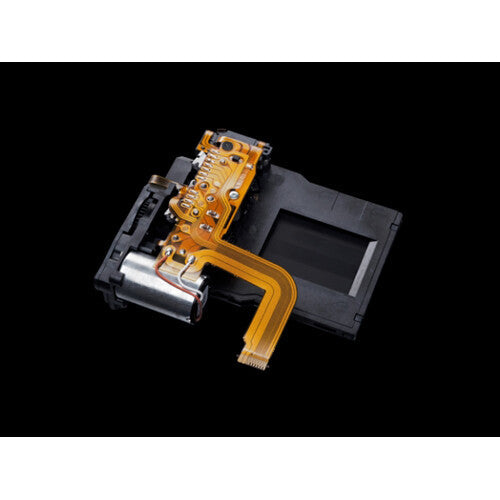

Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
Shutter Speed | Mechanical Shutter 1/8000 to 60 Seconds Electronic Front Curtain Shutter 1/320 to 60 Seconds Electronic Shutter 1/32000 to 60 Seconds |
Bulb/Time Mode | Bulb Mode, Time Mode |
ISO Sensitivity Range | Photo/Video 200 to 102,400 in Manual, Auto Mode |
Metering Method | Center-Weighted Average, Highlight, Multi-Zone, Spot |
Precise Scan Rate Control | No |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
Metering Range | -2 to 20 EV |
White Balance | Presets: AWB, Custom |
Continuous Shooting | Mechanical Shutter Up to 10 fps |
Interval Recording | Yes |
Self-Timer | No |
Image Sizes | 4:3 JPEG / Raw 20 MP (5184 x 3888) |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | JPEG, Raw |
Bit Depth | 12-Bit |
Internal Recording Modes | H.264/MOV/MPEG-4 AVC 4096 x 2160 at 24.00/25/30.00/50/60.00 fps 3840 x 2160 at 24.00/25/30.00/50/60.00 fps 1920 x 1080 at 24.00/25/30.00/50/60.00 fps |
External Recording Modes | No |
Fast-/Slow-Motion Support | Yes |
Gamma Curve | FLAT, HDR-HLG, OM-Log |
IP Streaming | No |
Built-In Microphone Type | Stereo |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Input |
Power I/O | 1x USB-C Input/Output |
Other I/O | 1x Built-In Cable with Micro-USB |
Wireless | 2.4 / 5 GHz Wi-Fi |
Mobile App Compatible | Yes: Android & iOS |
Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
Display Size | 3" |
Resolution | 1,620,000 Dot |
Display Type | Articulating Touchscreen LCD |
Type | Built-In Electronic (OLED) |
Resolution | 5,760,000 Dot |
Eye Point | 21 mm |
Coverage | 100% |
Magnification | Approx. 1.48x |
Diopter Adjustment | -4 to +2 |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Photo, Video Phase Detection: 1053 |
Built-In Flash/Light | No |
Flash Modes | Fill In, Manual, Off, Red-Eye Reduction, Slow Sync |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2, 1 EV Steps) |
Dedicated Flash System | TTL |
External Flash Connection | PC Terminal |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 30 to 90% |
Storage Humidity | 10 to 90% |
Battery Type | 1x BLX-1 Rechargeable Lithium-Ion |
Shoe Mount | 1x Hot Shoe |
Tripod Mounting Thread | 1x 1/4"-20 Female |
Dimensions (W x H x D) | 5.3 x 3.6 x 2.9" / 134.8 x 91.6 x 72.7 mm |
Weight | 1.1 lb / 511 g (Body Only) |
In The Box | OM SYSTEM OM-1 Mark II Mirrorless Camera (Body Only) OM SYSTEM CB-USB13 USB Connection Cable OM SYSTEM BLX-1 Lithium-Ion Battery (7.2V, 2280mAh) OM SYSTEM F-7AC USB-AC Adapter Shoulder Strap F-7AC Adapter FL-LM3 Flash Limited 1-Year Manufacturer Warranty |
---|---|
MFG Part# | V210040BU000 |
Condition | New |
