- 20.4MP Live MOS Micro Four Thirds Sensor
- TruePic IX Image Processor
- DCI 4K/24p & UHD 4K/30p Video Recording
- 5-Axis Sensor-Shift Image Stabilization
- IP53-Rated, Weather-Sealed Construction
Quick Overview
- 20.4MP Live MOS Micro Four Thirds Sensor
- TruePic IX Image Processor
- DCI 4K/24p & UHD 4K/30p Video Recording
- 5-Axis Sensor-Shift Image Stabilization
- IP53-Rated, Weather-Sealed Construction
- 121-Point Hybrid Contrast + Phase AF
- SD Memory Card Slot
- 2.36m-Dot Eye-Level OLED EVF
- 3.0" 1.04m-Dot Vari-Angle Touchscreen
- Wi-Fi and Bluetooth
Product Description
OM SYSTEM OM-5 Mark II Mirrorless Camera (Black)
Compact. Lightweight. Built for Adventure.
The OM SYSTEM OM-5 Mark II continues the brand’s legacy of compact, high-resolution mirrorless cameras, combining rugged reliability with innovative upgrades for creators on the move. This second-generation model refines both ergonomics and performance, making it an ideal companion for adventurous photography in all environments.
Key Upgrades in the Mark II
USB-C Charging & Data Transfer
The addition of a USB-C port supports both fast file transfer and convenient charging via portable power banks (sold separately)—perfect for extended shoots in the field.
Dedicated Computational Photography Button
A new top-plate button provides direct access to advanced shooting tools such as High-Res Shot, Live ND, Focus Stacking, HDR, and Multiple Exposure—no menu diving required.
Enhanced Low-Light Modes
-
Night Vision Mode enhances dark scenes, clearly revealing both the sky and foreground for easier composition.
-
Hand Held Assist offers real-time stability feedback during long exposures—ideal for low-light handheld shooting.
New Cinematic Color Profiles
Achieve rich, film-like footage straight from the camera with two new OM Cinema profiles—OM Cinema 1 & 2—designed for easy cinematic video without the need for grading.
Redesigned Menu System
Adopting the intuitive OM SYSTEM menu from the OM-1 Mark II and OM-3, the OM-5 Mark II features user-friendly navigation even for beginners.
Improved Grip Design
The updated body includes a deeper handgrip for enhanced comfort and more secure one-handed operation.
Performance & Imaging
20.4MP Live MOS Sensor + TruePic IX Processor
Delivers sharp, detailed images with a fast ISO range up to 25600. Supports 4K video and rapid 30 fps continuous shooting in Pro Capture mode, which begins capturing frames before the shutter is fully pressed.
121-Point Cross-Type Phase Detection AF
Dual 121-point phase and contrast-detection autofocus ensures quick and accurate focusing. All phase-detection points are cross-type for precision in mixed lighting, with dedicated modes for face/eye detection, wildlife, and astrophotography (Starry Sky AF).
5-Axis In-Body Image Stabilization
Reduces camera shake by up to 6.5 stops (7.5 stops with compatible lenses), enhancing handheld performance for telephoto, macro, and long-exposure shots. Supports High-Res Shot and Hand Held Assist modes.
4K Video + OM-Log400
Capture DCI (4096 x 2160) and UHD (3840 x 2160) 4K at up to 30p with audio via built-in or external mic. A front tally lamp and LCD recording frame ensure clear indication during capture. Also supports time-lapse and UVC/UAC webcam functionality.
Creative Modes
-
Live ND 16 simulates neutral density filters for blurred motion effects in a single frame.
-
Focus Stacking extends depth of field by compositing multiple exposures.
-
High-Res Shot offers 50MP handheld or 80MP tripod output.
-
Live Composite builds exposures over time without overexposing bright areas—great for light painting and astrophotography.
-
Vertical Video mode records in 9:16 for easy social media sharing.
Built for Harsh Environments
With an IP53 rating, the OM-5 Mark II is freezeproof, dustproof, and splash-resistant, operating in temperatures as low as 14°F (-10°C).
Design & Connectivity Features
-
2.36m-dot Electronic Viewfinder for clear eye-level viewing
-

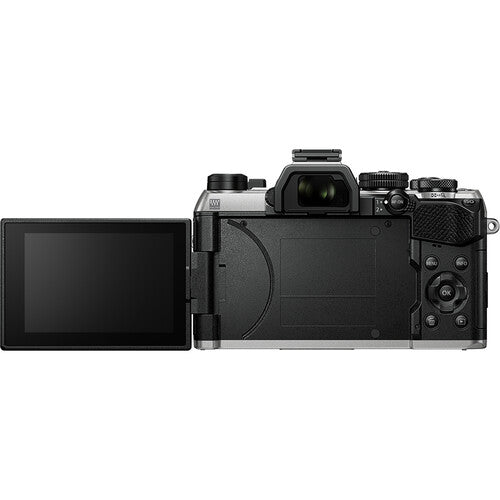

3.0" Vari-Angle Touchscreen (1.04m-dot) for flexible shooting and intuitive control
-
BLS-50 Battery powers approx. 310 shots per charge
-
UHS-II SD Card Slot for fast performance
-
Connectivity includes:
-
Micro-HDMI
-
Micro-USB
-
USB-C
-
Mic input
-
2.5mm remote port
-
Hot shoe
-
Built-in Wi-Fi & Bluetooth for wireless sharing and remote control.
-
OM SYSTEM OM-5 Mark II Mirrorless Camera
| Lens Mount | Micro Four Thirds |
| Sensor Resolution | Actual: 21.8 Megapixel Effective: 20.4 Megapixel |
| Image Sensor | 17.4 x 13 mm (Four Thirds) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| ISO/Gain Sensitivity | Photo/Video Native in Manual Mode: 200 to 6400 (64 to 6400 Extended) Native in Auto Mode: 6400 |
| Internal Recording Modes | H.264/MPEG-4 AVC 4096 x 2160 at 24.00 fps [240 Mb/s] 3840 x 2160 at 24.00/25/30.00 fps [105 Mb/s] 1920 x 1080 at 24.00/25/30.00/50/60.00/120 fps [30 to 205 Mb/s] 1280 x 720 at 24.00/25/30.00/50/60.00 fps |
| External Recording Modes | No |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C Data Input/Output (Shared with Power Input) |
| Wireless | Wi-Fi, Bluetooth Control |
| Display Type | Articulating Touchscreen LCD |
| Battery | 1x BLS-10 Rechargeable Lithium-Ion (Included) • Approx. 310 Shots |
| Lens Mount | Micro Four Thirds |
| Sensor Resolution | Actual: 21.8 Megapixel Effective: 20.4 Megapixel |
| Image Sensor | 17.4 x 13 mm (Four Thirds) CMOS |
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with 4-Stop (1/16) ND Filters |
| Capture Type | Stills & Video |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed | Electronic Shutter 1/32000 to 60 Seconds Electronic Front Curtain Shutter 1/320 to 60 Seconds Mechanical Shutter 1/8000 to 60 Seconds |
| Bulb/Time Mode | Bulb & Time Mode |
| ISO/Gain Sensitivity | Photo/Video Native in Manual Mode: 200 to 6400 (64 to 6400 Extended) Native in Auto Mode: 6400 |
| Metering Method | Center-Weighted Average, Highlight Weighted, Multi-Zone, Spot |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Kelvin |
| Continuous Shooting | Up to 30 fps at Maximum Resolution |
| Interval Recording | Yes |
| Aspect Ratio | 1:1, 3:2, 3:4, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 12-Bit |
| Internal Recording Modes | H.264/MPEG-4 AVC 4096 x 2160 at 24.00 fps [240 Mb/s] 3840 x 2160 at 24.00/25/30.00 fps [105 Mb/s] 1920 x 1080 at 24.00/25/30.00/50/60.00/120 fps [30 to 205 Mb/s] 1280 x 720 at 24.00/25/30.00/50/60.00 fps |
| External Recording Modes | No |
| Fast-/Slow-Motion Support | Yes |
| Recording Limit | No |
| Built-In Microphone | Stereo Mono |
| Audio Recording | 16-Bit 48 kHz LPCM Audio |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C Data Input/Output (Shared with Power Input) |
| Wireless | Wi-Fi, Bluetooth Control |
| Mobile App Compatible | Yes: Android & iOS App Name: OM Image Share |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Display Size | 3" |
| Resolution | 1,037,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| Type | Electronic (OLED) |
| Resolution | 1024 x 768 (2,360,000 Dot) |
| Coverage | 100% |
| Magnification | Approx. 1.48x |
| Diopter Adjustment | No |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Photo, Video Contrast Detection, Phase Detection: 121 |
| Built-In Flash/Light | No |
| Flash Modes | Auto, Fill In, Manual, Off, Slow Sync, TTL Auto |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV |
| Dedicated Flash System | TTL |
| External Flash Connection | Shoe Mount |
| Battery | 1x BLS-10 Rechargeable Lithium-Ion (Included) • Approx. 310 Shots |
| Shoe Mount | 1x Hot Shoe |
| Tripod Mounting Thread | 1x 1/4"-20 Female |
| Material of Construction | Magnesium Alloy |
| Dimensions (W x H x D) | 4.9 x 3.4 x 2" / 125.3 x 85.2 x 49.7 mm |
| Weight | 13.1 oz / 370 g (Body Only) |
| In The Box | OM SYSTEM OM-5 Mark II Mirrorless Camera (Black) USB-A to USB-C Cable OM SYSTEM BLS-50 Lithium-Ion Battery (7.2V, 1210mAh) Shoulder Strap Limited 1-Year Manufacturer Warranty |
|---|
